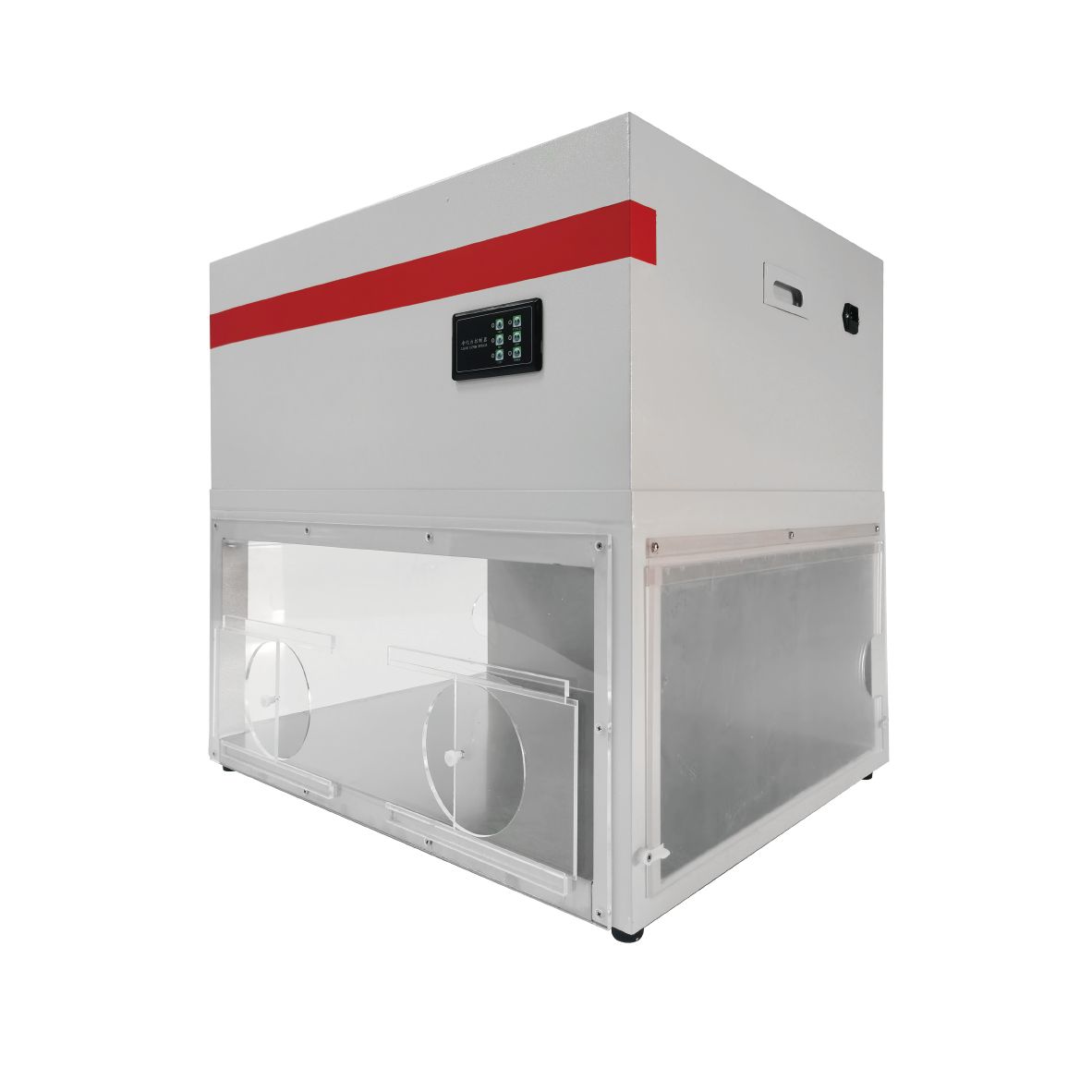

Jinda portable clean benches, also known as portable clean hoods or laminar flow workstations, are specialized enclosures used in laboratories, manufacturing facilities, healthcare settings, and other environments where a controlled, sterile, or particulate-free work area is required. These benches from China manufacturers provide a localized clean and sterile environment to protect sensitive processes, materials, or equipment from contamination.
type | JD-CJ-1A | JD-CJ-2A | JD-QB-1A | JD-QB-2A |
Cleanliness level | 100grade(US Federal 209E) | |||
average wind speed | 0.4m/s±20%(Adjustable) | |||
Noise | ≤65dB(A) | |||
vibration half peak | ≤3μm | |||
illumination | ≥300LX | |||
power supply | AC, single phase 220V/50Hz | |||
Maximum power | 0.4KW | 0.8KW | 0.4KW | 0.8KW |
Purification area size (width * depth * height mm) | 850*500*620 | 1450*500*620 | 770*510*520 | 1270*510*520 |
Overall dimensions (width*depth*height mm) | 900*720*1450 | 1500*720*1450 | 800*710*1500 | 1300*710*1500 |
Primary filter specifications and quantity | 490*490*20*① | 820*600*50*① | 260*220*10*② | 260*220*10*② |
Specifications and quantities of high-efficiency filters without partitions | 820*600*50*① | 600*600*50*① | 720*484*50*① | 1220*484*50*① |
Specifications and quantities of germicidal lamps/lighting lamps | 14W*①pc/LED 9W*①pc | 28W*①pc/LED 18W*①pc | T58W*①pc/14W*①pc | T514W*①pc/21W*①pc |
Box material |
It adopts a closed cold-rolled steel plate structure, and the entire work area is electrostatically sprayed. The countertop is made of stainless steel. |
It adopts galvanized square tube steel plate structure and is treated with electrostatic spraying as a whole. The work area The countertop is made of stainless steel. |
||
fan | Single YYD-50*1, double YYD-50*2 (independent tap fan, independent motor winding) | |||
controller | High, medium and low speed adjustment, soft contact switch | |||
Universal wheel | High, medium and low speed adjustment, soft contact switch | |||
Airflow direction | Horizontal flow direction | |||
windshield | 8mm thickened glass, surrounded by blue aluminum alloy edges and beveled edges (square glass models can be customized). | |||
Applicable number of people | Single person single sided | Double single sided | Single person single sided | Double single sided |
