Laboratory Laminar Air Flow Clean Bench
  • Laboratory Laminar Air Flow Clean BenchLaboratory Laminar Air Flow Clean Bench

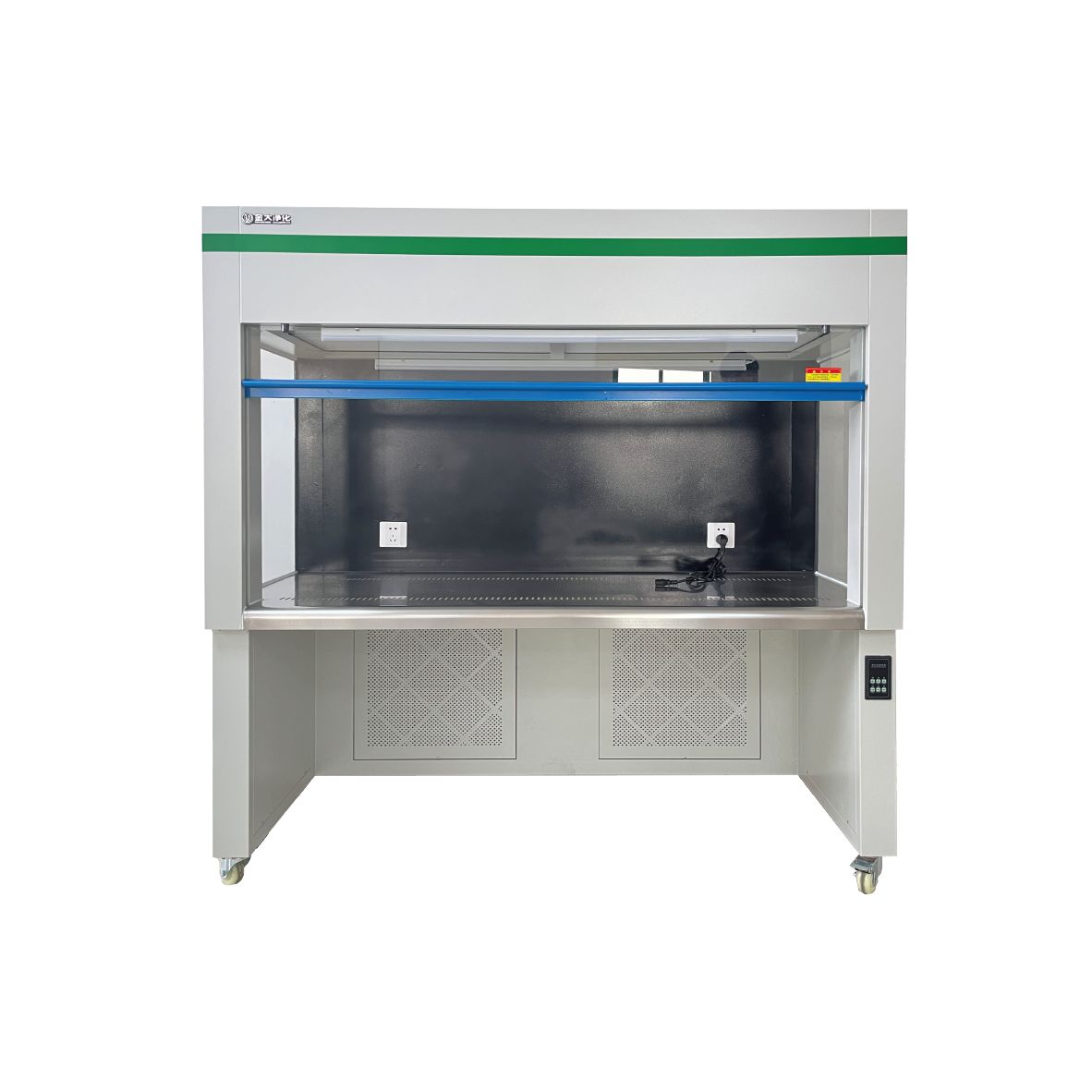

Laboratory Laminar Air Flow Clean Bench

The Jinda laboratory laminar air flow clean bench, often referred to as a laminar flow clean bench or simply a clean bench, is a specialized piece of equipment commonly used in laboratories, research facilities, and other controlled environments. It is designed to provide a localized, ultra-clean and sterile working area, ensuring that experiments, research, or tasks are conducted in a contaminant-free environment. As the professional manufacturer, we would like to provide you high quality clean bench.

Send Inquiry

Product Description

The Jinda laboratory laminar air flow clean bench, often referred to as a laminar flow hood or simply a clean bench, is a piece of equipment commonly used in laboratory and cleanroom settings. It creates a sterile, particle-free environment to handle sensitive materials, samples, or experiments. Laminar air flow hoods are designed to provide a continuous flow of clean, filtered air over a work area, preventing contamination from the surrounding environment.


Featuring a horizontal configuration with an open countertop for user-friendly operation.

● Employing a vertical flow design with a semi-enclosed tabletop to effectively prevent the introduction of external air and contain odors generated during operation.
● Utilizing an adjustable fan system with a touch switch for precise voltage control, ensuring a consistently ideal airflow velocity within the working area.
● Constructed with a stainless steel work surface for excellent corrosion resistance.
● Can be configured as a standalone unit, providing a stable, vibration-free workspace.
● Optional ultra-high efficiency filters for achieving a high cleanliness environment.
● Offers an operating environment with a cleanliness class of 100 and a filtration accuracy of ≥0.5μm.
● Utilizes ultra-thin, non-separator high-efficiency air filters, saving valuable space.
● Equipped with a touch-sensitive electronic control panel, allowing for stepless adjustment of fan airflow to maintain the desired airflow velocity in the working area.
● Features a stainless steel work surface, a transparent plexiglass enclosure, and the option to include a UV light with remote control electrical interface.

type JD-HS-1A JD-HS-2A JD-VS-1S JD-VS-2S
Cleanliness level 100grade(US Federal 209E)
average wind speed 0.4m/s±20%(Adjustable)
Noise Low range 60 dB, mid range 62 dB, high range 65dB.
vibration half peak ≤3μm
illumination ≥300LX
power supply AC, single phase 220V/50Hz
Maximum power 0.4KW 0.8KW 0.4KW 0.8KW
Purification area size (width * depth * height mm) 840*825*1450 1800*825*1450 840*800*1760 1680*800*1760
Overall dimensions (width*depth*height mm) 740*650*560 1700*650*560 660*630*720 1500*630*720
Primary filter specifications and quantity 490*490*20*① 490*490*20*① 490*490*20*② 490*490*20*②
Specifications and quantities of high-efficiency filters without partitions 820*600*50*① 870*600*50*① 660*560*50*① 750*560*50*①
Specifications and quantities of germicidal lamps/lighting lamps 14W*①pc/LED 9W*①pc 28W*①pc/LED 18W*①pc 14W*①pc/14W*①pc 28W*①pc/21W*①pc
Box material

It adopts a closed cold-rolled steel plate structure, and the entire work area is electrostatically sprayed.

The countertop is made of stainless steel.

It adopts galvanized square tube steel plate structure and is treated with electrostatic spraying as a whole. The work area

The countertop is made of stainless steel.

fan Single YYD-50*1, double YYD-50*2 (independent tap fan, independent motor winding)
controller High, medium and low speed adjustment, soft contact switch
Universal wheel Made of nylon wheels, wear-resistant, 4 load-bearing 400Kg, equipped with 4 adjustable support feet on the edge.
Airflow direction Horizontal flow direction
windshield 8mm thickened glass, surrounded by blue aluminum alloy edges and beveled edges (square glass models can be customized).
Applicable number of people Single person single sided Double single sided Single person single sided Double single sided
