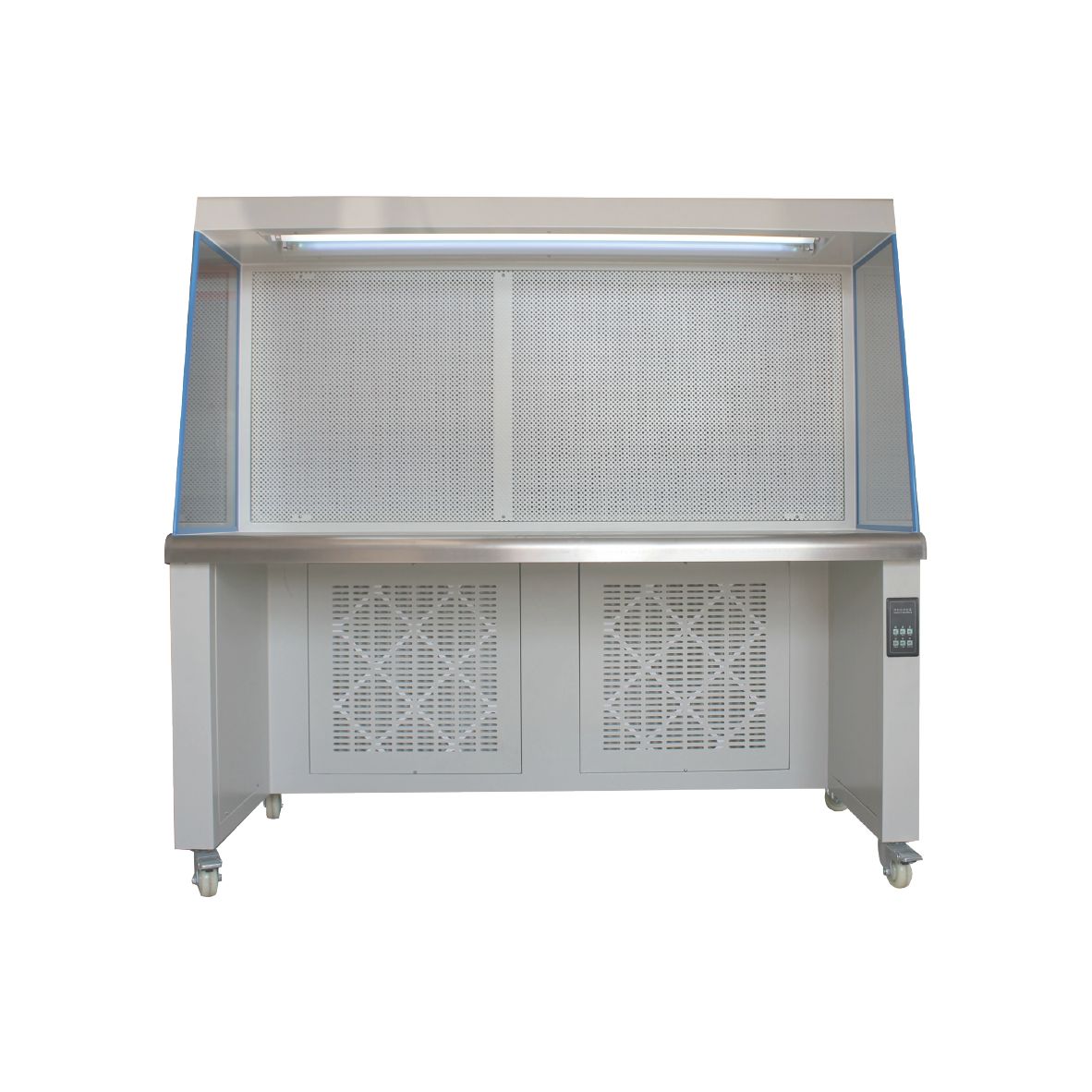

Horizontal Laminar Flow Hood
  • Horizontal Laminar Flow HoodHorizontal Laminar Flow Hood

Horizontal Laminar Flow Hood

The jinda horizontal laminar flow hood is a type of clean bench or clean air enclosure used in laboratory and industrial settings to provide a controlled, clean environment for various tasks. It is designed to direct a continuous flow of filtered, clean air in a horizontal direction, parallel to the work surface. You can rest assured to buy jinda high quality Horizontal Laminar Flow Hood from our factory and we will offer you the after-sale service and timely delivery.

Send Inquiry

Product Description

Here are some key features and functions of a horizontal laminar flow hood:

Airflow: Horizontal laminar flow hoods from China manufacturers create a horizontal laminar airflow pattern. Clean air is supplied from the rear of the hood and flows toward the front, ensuring that the work area is constantly bathed in a stream of clean air. This helps to protect the work surface and any sensitive materials or samples from contamination.

HEPA or ULPA Filters: These hoods are equipped with high-efficiency particulate air (HEPA) filters or ultra-low penetration air (ULPA) filters. These filters are designed to remove particulate contaminants and microorganisms from the incoming air, ensuring a high level of cleanliness.

Work Surface: The work surface inside the hood is typically made of stainless steel or another non-contaminating material. It's easy to clean and resistant to corrosion.

Front Sash or Shield: A transparent sash or shield at the front of the hood provides visibility and access to the work area. It helps to maintain a barrier between the work and the external environment.

Control Panel: These hoods may feature a control panel that allows users to adjust the fan speed, monitor airflow, and set alarms for filter replacement or maintenance.

Lighting: Integrated lighting provides adequate illumination of the work area.

Noise Reduction: Some models include noise-reduction features to minimize operational noise and create a quieter working environment.

Safety Features: Many horizontal laminar flow hoods from China factory have safety features such as alarms to alert users if the sash is not in the correct position or if airflow falls below the desired level.

Horizontal laminar flow hoods are commonly used for tasks that require a high level of cleanliness, such as microbiological testing, pharmaceutical compounding, electronics assembly, and other applications where protecting samples or products from contamination is critical.

type JD-HS-1A JD-HS-2A JD-VS-1S JD-VS-2S
Cleanliness level 100grade(US Federal 209E)
average wind speed 0.4m/s±20%(Adjustable)
Noise Low range 60 dB, mid range 62 dB, high range 65dB.
vibration half peak ≤3μm
illumination ≥300LX
power supply AC, single phase 220V/50Hz
Maximum power 0.4KW 0.8KW 0.4KW 0.8KW
Purification area size (width * depth * height mm) 840*825*1450 1800*825*1450 840*800*1760 1680*800*1760
Overall dimensions (width*depth*height mm) 740*650*560 1700*650*560 660*630*720 1500*630*720
Primary filter specifications and quantity 490*490*20*① 490*490*20*① 490*490*20*② 490*490*20*②
Specifications and quantities of high-efficiency filters without partitions 820*600*50*① 870*600*50*① 660*560*50*① 750*560*50*①
Specifications and quantities of germicidal lamps/lighting lamps 14W*①pc/LED 9W*①pc 28W*①pc/LED 18W*①pc 14W*①pc/14W*①pc 28W*①pc/21W*①pc
Box material

It adopts a closed cold-rolled steel plate structure, and the entire work area is electrostatically sprayed.

The countertop is made of stainless steel.

It adopts galvanized square tube steel plate structure and is treated with electrostatic spraying as a whole. The work area

The countertop is made of stainless steel.

fan Single YYD-50*1, double YYD-50*2 (independent tap fan, independent motor winding)
controller High, medium and low speed adjustment, soft contact switch
Universal wheel Made of nylon wheels, wear-resistant, 4 load-bearing 400Kg, equipped with 4 adjustable support feet on the edge.
Airflow direction Horizontal flow direction
windshield 8mm thickened glass, surrounded by blue aluminum alloy edges and beveled edges (square glass models can be customized).
Applicable number of people Single person single sided Double single sided Single person single sided Double single sided
