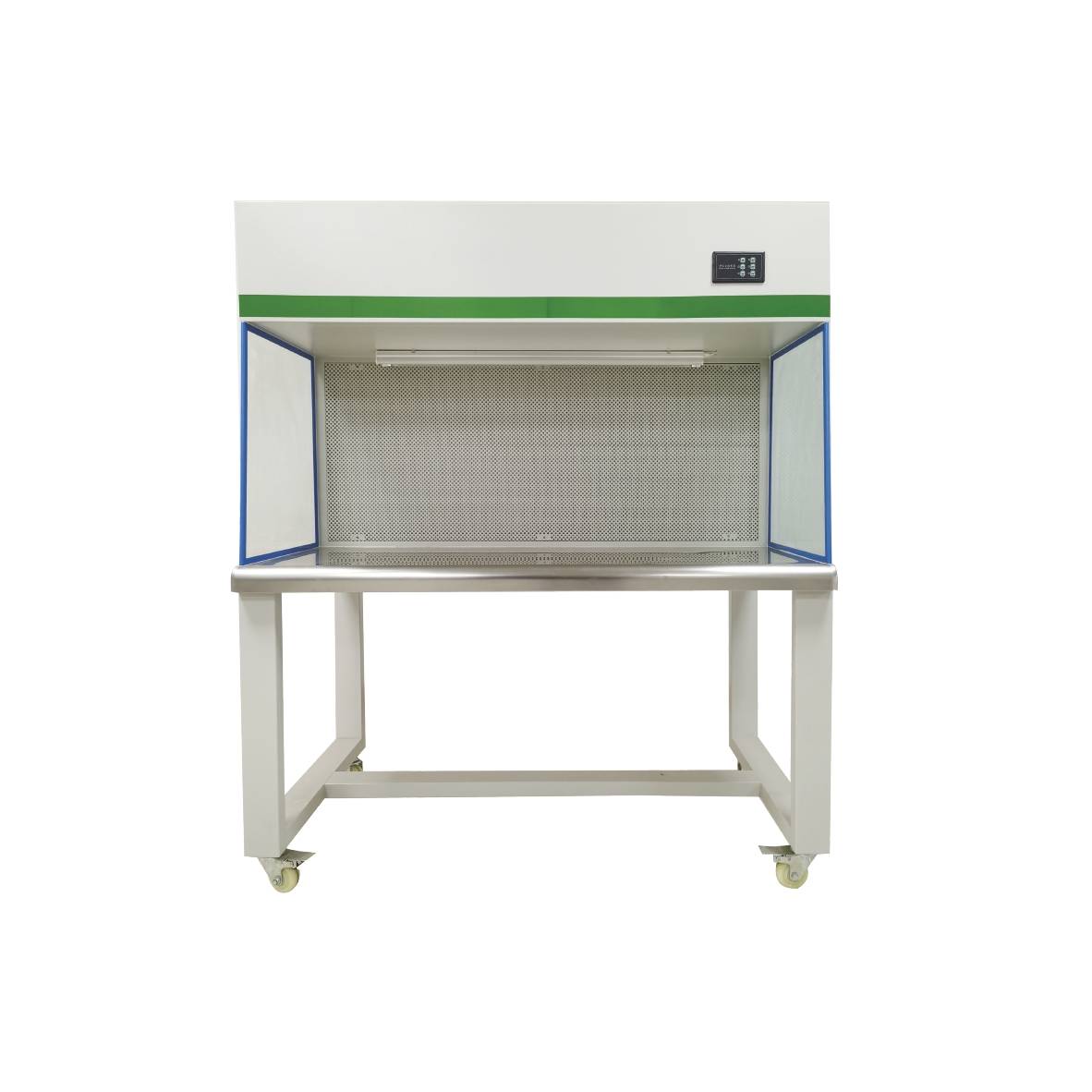

Horizontal Laminar Flow Hood Clean Bench
  • Horizontal Laminar Flow Hood Clean BenchHorizontal Laminar Flow Hood Clean Bench

Horizontal Laminar Flow Hood Clean Bench

In factory production, where there's a substantial workload and extended work hours, the Jinda Horizontal Laminar Flow Hood Clean Bench proves to be an ideal piece of equipment. It offers several advantages, including ease of operation, comfort during use, high work efficiency, and minimal setup time. It can become operational in as little as 10 minutes after startup, making it readily available for use at any time.

Send Inquiry

Product Description


The longevity of a Horizontal Laminar Flow Hood Clean Bench from China suppliers is closely linked to the quality of the air. In temperate regions, these clean benches can be employed in standard laboratory settings. However, in tropical or subtropical areas with higher levels of airborne pollen and dust, it is advisable to use ultra-clean benches within well-enclosed, double-door indoor spaces.

It's crucial to position the air intake of the Jinda Horizontal Laminar Flow Hood Clean Bench away from open doors or windows at all times to prevent any adverse impact on the filter's service life. Additionally, ultraviolet lamps can be mounted on the ultra-clean workbench, but they should be installed externally to the lampshade. These lamps must be staggered and arranged in parallel to avoid obstructing lighting during work. Placing a UV lamp inside a lighting shade (glass plate) is ineffective since UV rays cannot penetrate glass; the lamp tube is made of quartz glass, not silicate glass.

type JD-CJ-1A JD-CJ-2A JD-QB-1A JD-QB-2A
Cleanliness level 100grade(US Federal 209E)
average wind speed 0.4m/s±20%(Adjustable)
Noise ≤65dB(A)
vibration half peak ≤3μm
illumination ≥300LX
power supply AC, single phase 220V/50Hz
Maximum power 0.4KW 0.8KW 0.4KW 0.8KW
Purification area size (width * depth * height mm) 850*500*620 1450*500*620 770*510*520 1270*510*520
Overall dimensions (width*depth*height mm) 900*720*1450 1500*720*1450 800*710*1500 1300*710*1500
Primary filter specifications and quantity 490*490*20*① 820*600*50*① 260*220*10*② 260*220*10*②
Specifications and quantities of high-efficiency filters without partitions 820*600*50*① 600*600*50*① 720*484*50*① 1220*484*50*①
Specifications and quantities of germicidal lamps/lighting lamps 14W*①pc/LED 9W*①pc 28W*①pc/LED 18W*①pc T58W*①pc/14W*①pc T514W*①pc/21W*①pc
Box material

It adopts a closed cold-rolled steel plate structure, and the entire work area is electrostatically sprayed.

The countertop is made of stainless steel.

It adopts galvanized square tube steel plate structure and is treated with electrostatic spraying as a whole. The work area

The countertop is made of stainless steel.

fan Single YYD-50*1, double YYD-50*2 (independent tap fan, independent motor winding)
controller High, medium and low speed adjustment, soft contact switch
Universal wheel Nylon wheel material, wear-resistant, 4 load-bearing 400Kg
Airflow direction Horizontal flow direction
windshield 8mm thickened glass, surrounded by blue aluminum alloy edges and beveled edges (square glass models can be customized).
Applicable number of people Single person single sided Double single sided Single person single sided Double single sided
