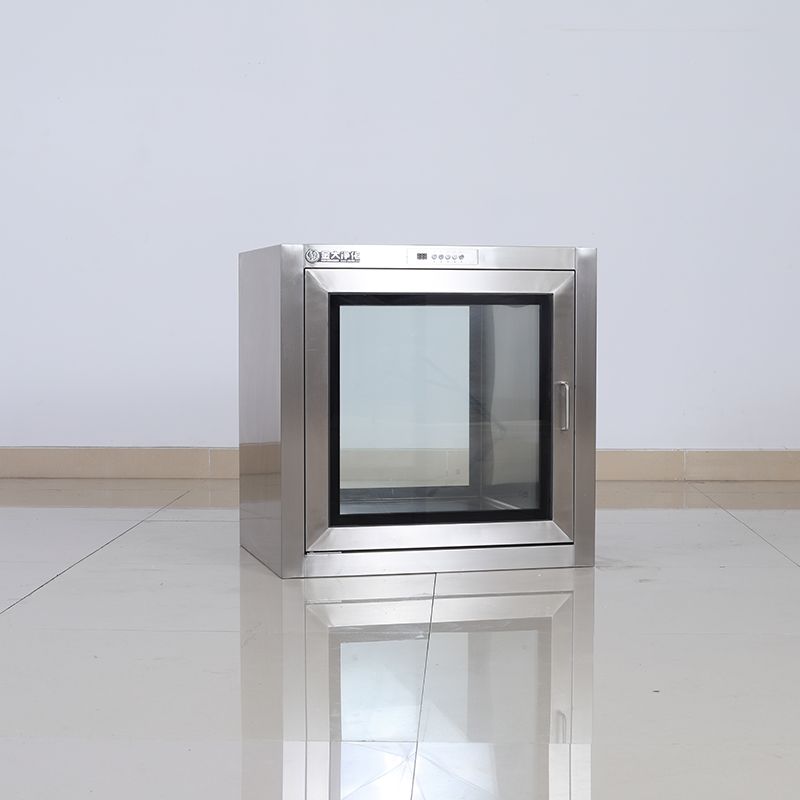

Electrical Interlock Pass Box

The Jinda Electrical Interlock Pass Box from China factory uses integrated circuits, hook locks or electromagnetic locks, control panels, indicator lights, etc. to achieve interlocking. When one door is opened, the door opening indicator light of the other door does not light up, indicating that the door cannot be opened. At the same time The electromagnetic lock action realizes interlocking. When the door is closed, the electronic lock of the other door starts to work, and the indicator light will light up to indicate that the other door can be opened.

Transfer windows are divided into three categories: 1. Mechanical chain transfer window 2. Electronic chain transfer window 3. Clean and self-cleaning transfer window.

According to the working principle, it can be divided into: ordinary transfer window, self-cleaning transfer window and air shower transfer window.
Styles can be divided into: throw door transfer window, flat door embedded transfer window.
Optional configurations: intercom, germicidal lamp, mechanical interlock, hook lock electronic interlock, magnetic lock electronic interlock and other related configurations.

Transfer windows of various specifications can be customized according to actual needs.

Use 75% medical alcohol or disinfectant to wipe the surface for disinfection; open the side door outside the transfer window, quickly place the items to be transferred, use 0.5% peracetic acid spray to disinfect the transfer window, close the side door outside the transfer window, turn on the ultraviolet germicidal lamp in the transfer window, and Irradiate transfer items for no less than 15 minutes. Afterwards, notify the experimenter or staff in the barrier system, open the inner door of the transfer window, and take out the
Take out the items, close the inner door, and the process ends.

1. Mechanical interlocking device: The interlocking is implemented mechanically internally. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.
2. Electronic interlocking device: Internally, integrated circuits, hook locks or electromagnetic locks, control panels, indicator lights, etc. are used to achieve interlocking. When one door is opened, the door opening indicator light of the other door does not light up, informing this door
It cannot be opened, and the electromagnetic lock action realizes interlocking at the same time. When the door is closed, the electronic lock of the other door starts to work, and the indicator light will light up to indicate that the other door can be opened.
3. Clean the transfer window: Open one of the doors, put the goods into the transfer window, close both doors, and turn on the fan switch. After hearing the sound of the fan, it will take about 5-30 minutes to purify the internal air. At the same time, the germicidal lamp can be turned on for internal sterilization. (Note: The purification working time can be extended or shortened according to the requirements of the goods) After the work is completed, open another door and take out the goods.
